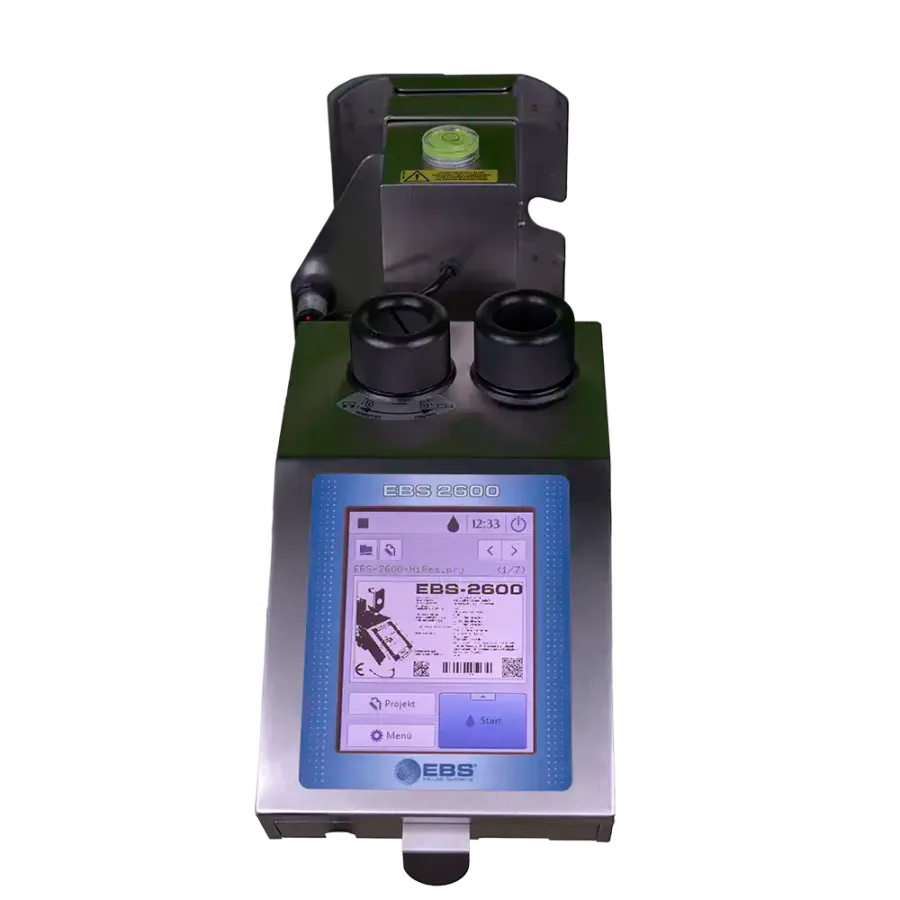

EBS-2600 high-resolution printer marking a wooden pallet block

EBS 2600 · High-resolution

EBS-2600

High-resolution piezo printer for absorbent surfaces, 15 W maximum power draw.

A compact DOD piezo printer for high-resolution marking on absorbent surfaces — pallets, cartons, crates — using solvent-free, odour-neutral oil inks, drawing at most 15 W.

Request a quote

The EBS-2600 is ready to print within seconds of power-on, controlled from its own 5.7" colour touchscreen or remotely through a web browser. It reaches up to 510 dots vertically (up to 71.8 mm print height) at 180 dpi and 60 m/min, printing text in any font and height, raster graphics, geometric shapes, and 1D/2D barcodes.

Its oil-based inks are solvent-free and odour-neutral, formulated for strong adhesion on absorbent surfaces such as wood pallets, cardboard cartons and crates. EBS positions it as a replacement for label printers and branding irons in logistics, woodworking and packaging lines, and it draws a maximum of 15 W.

Connectivity covers Ethernet, USB, RS-232 and RS-485, with multi-user access control and support for MySQL, SQL Server and PostgreSQL databases.

Specifications

Print height	1–71.8 mm
Max line speed	60 m/min (180 dpi)
Resolution	180 dpi
Compressed air	Not required
Power consumption	15 W
Weight	4.8 kg
Printheads	1
Ink types	oil-based
Solvents	none
Code types	1D barcode, 2D barcode
Interfaces	Ethernet, USB, RS-232, RS-485

Figures from: EBS-2600 brochure (German, 4-page), v1.0 (01.2023) (retrieved2026-09-10)

Marks on

Used in

packaging

Documents

EBS-2600 brochure (German) · v1.0
