FlexiMate eLinear
Electro-pneumatic tamp / tamp-blow print & apply applicator with a programmable stroke, for variable-height products.

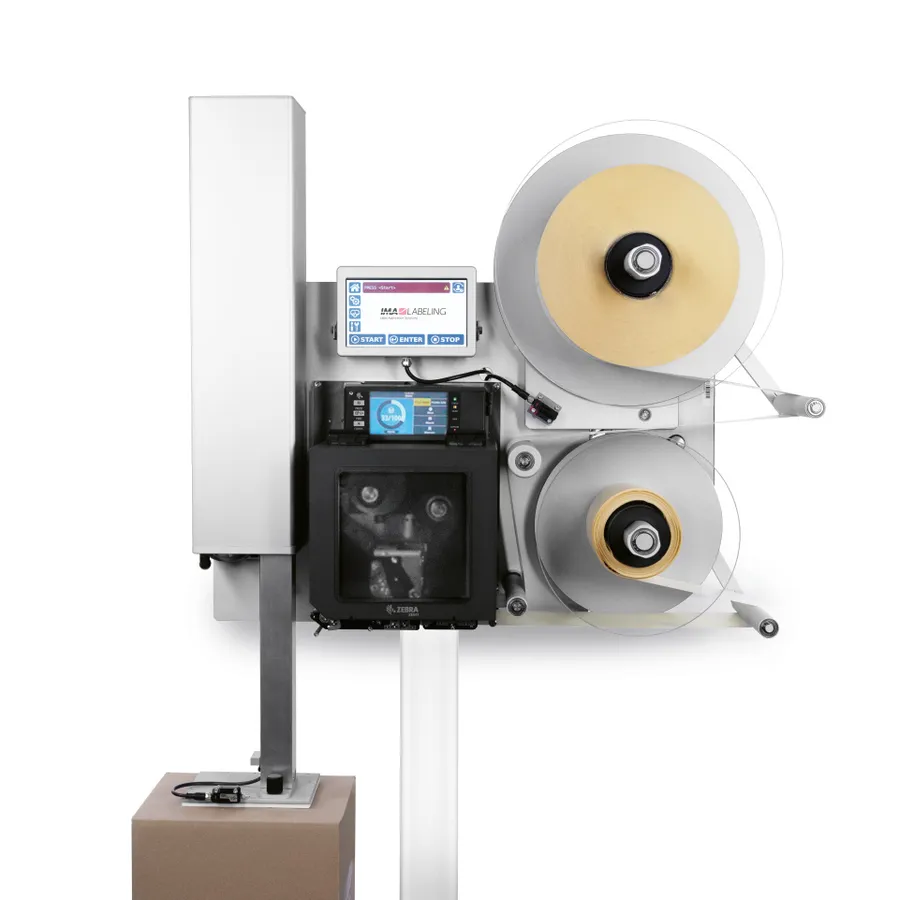

A modular FlexiMate print & apply unit that tamps or blows labels onto stationary or moving products of different heights, with stroke, speed and acceleration programmable from a 7" touchscreen or IMA's LinkMate configuration tool.
Заявка за офертаThe FlexiMate eLinear applies labels by tamp (with contact) or tamp & blow (no contact), on products that are stationary or moving on a conveyor. Its electro-pneumatic applicator unit — electrically driven, using compressed air for the tamp/blow stroke and to hold the label against the pad — positions the label accurately even as product height varies, with stroke, speed and acceleration all programmable from the 7" touchscreen or over IMA's LinkMate configuration tool.
The motorised unwinder/rewinder keeps the liner correctly tensioned for high-capacity reels and consistent print quality. Air assist blows compressed air onto the label's adhesive side as it is dispensed, and a micro-perforated tamp pad holds it by vacuum until it is placed — the combination that keeps application clean at speed.
Eight stroke/roller combinations cover the range: four nominal strokes (250/350/500/800 mm), each in a 4" or 6" roller width, with label sizes from 20×20 mm up to 110×250 mm (4") or 160×250 mm (6"). An optional laser measurement sensor or variable stroke proximity sensor lets the unit adapt its stroke automatically to products of different heights on the same line.
Configurations
- 250 / 4"250 mm stroke, 4" roller — max label 110×250 mm
- 250 / 6"250 mm stroke, 6" roller — max label 160×250 mm
- 350 / 4"350 mm stroke, 4" roller — max label 110×250 mm
- 350 / 6"350 mm stroke, 6" roller — max label 160×250 mm
- 500 / 4"500 mm stroke, 4" roller — max label 110×250 mm
- 500 / 6"500 mm stroke, 6" roller — max label 160×250 mm
- 800 / 4"800 mm stroke, 4" roller — max label 110×250 mm
- 800 / 6"800 mm stroke, 6" roller — max label 160×250 mm
Factory options
- Laser measurement sensor — dynamic stroke adaptation for variable product heights
- Variable stroke proximity sensor — contactless application on variable-height products
- Low label sensor with beacon indicator
- Counter flange for label reel positioning
- Liner support, for horizontal installation
- Quick-exchange coupling system, for changing label size
- Quick-exchange FlexPads, custom-made for uneven surfaces
- Fall arrest device
- Right- or left-hand version
Marks on
Used in
- packaging
Documents
- FlexiMate eLinear brochure · vSeptember 2025
Request a quote
Send the configuration and we will come back with a price and lead time.
